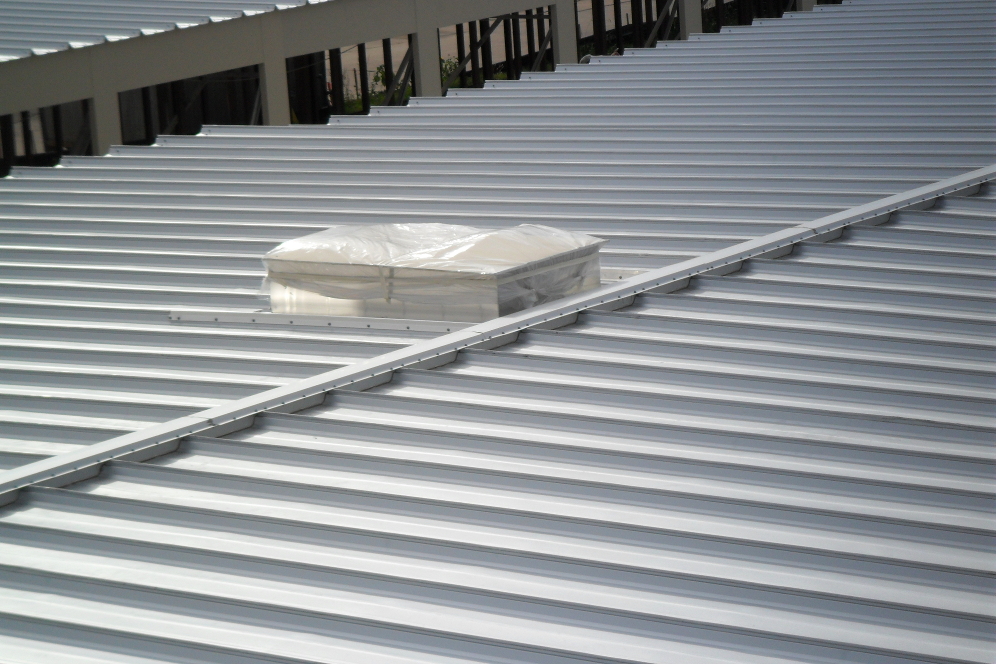

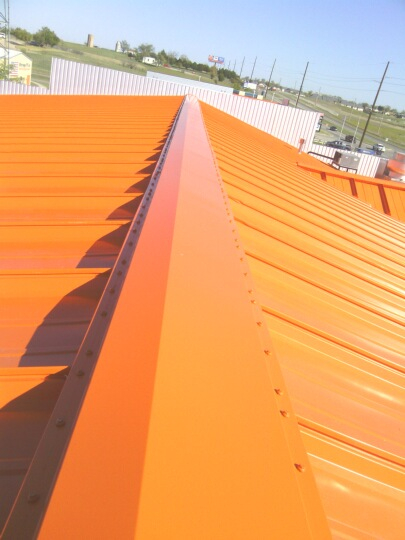

Single Slope, Double Slope And Custom
Roof Slopes From 1/4":12" (Standard)
To 6":12" Are Constructed Of 24 Guage
*Galvalume, Field Mechanically Seamed
Panels That Carry A 20-Year Warranty.


Roof Panels Are Attached To The Structural
Support With A Floating Clip Hooked From
Underneath To The Roof Panel At The Panel
Edge. The Floating Clip Allows For Thermal
Movement Of The Roof Panels.
Field Mechanical Seaming Is The Method Of
Rolling The Roof Seam Where The Panels
Snap Together, To A Double Lock
Configuration To Resist Seam Failure
Between Supports, Inhibit Sidelap
Unfurling Or Unzipping. Mechanical
Seaming Is Typically Required For Low
Slope Applications.

Accessories
Field Photos
Home
* Galvalume Is A Registered Trademark.
Owners & Architects
Standing Seam Roof Panels Furnished By Cannon Storage Systems, Inc. Are Classified As A "Hydrostatic" Panel.

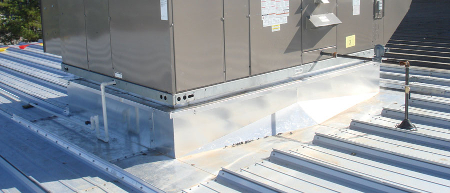

Galvanized Roof Top HCAV Package Unit Roof Curbs
Galvanized Roof Access Hatches
Aluminum Utility Clamps
Definitions Derived From The MBMA (Metal Building
Manufacturers Association) 2018 Metal Roofing Systems
Design Manual.
HYDROKINETIC:

Metal Panel Systems That Are Designed To Shed Water Are Referred To As Hydrokinetic. Hydrokinetic Roof
Details Are Typically Devoid Of Sealant And Rely On The
Water To Freely Shed Over The Joints. Hydrokinetic Roof
Details Are Not To Be Used On Roof Slopes Below 3":12".
HYDROSTATIC:

Metal Panel Systems That Are Designed To Withstand
Being Submerged In Water For A Period Of Time Are
Called Hydrostatic Panels. Hydrostatic Roof Details
Rely On Sealant To Keep Water From Infiltrating The
Joints And Seams. Hydrostatic Roof Details Can Be
Used At Almost Any Slope (1/4":12" Minimum).
